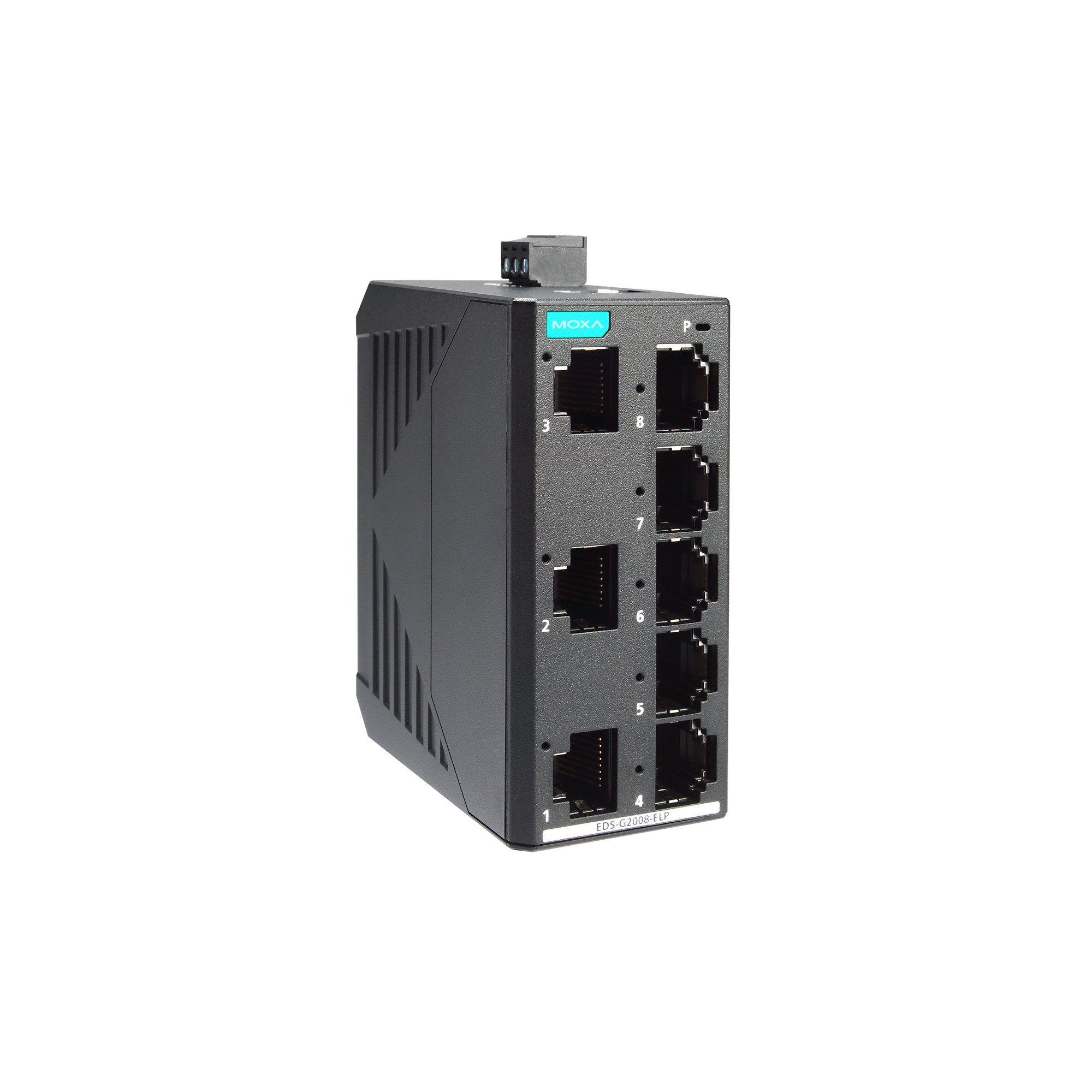

MOXA EDS-G2008-ELP

MOXA EDS-G2008-ELP 8埠入門級 非網管型 乙太網路交換器

NT$6,490

分類: 標籤:

描述

MOXA EDS-G2008-ELP 8埠入門級 非網管型 乙太網路交換器

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    8
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3x for flow control
    IEEE 802.1p for Class of Service

Switch Properties

  • Processing Type

    Store and Forward

  • MAC Table Size

    4 K

  • Packet Buffer Size

    1.5 Mbits

DIP Switch Configuration

  • Ethernet Interface

    Quality of Service (QoS)  , Broadcast Storm Protection (BSP)

Power Parameters

  • Connector

    1 removable 3-contact terminal block(s)

  • Input Current

    0.33 A (max.)

  • Input Voltage

    12/24/48 VDC

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

Physical Characteristics

  • Dimensions

    36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Housing

    Plastic

  • Weight

    140 g (0.31 lb)

Environmental Limits

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Standards and Certifications

  • Safety

    UL 61010-2-201
    EN IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Freefall

    ISTA 1A (with package)

MTBF

  • Time

    3,404,784 hrs

  • Standards

    Telcordia (Bellcore), GB

Warranty

請注意，您選擇購買本商品時，即視同您同意以下所有本產品相關之購買、退換條件。

請您於收貨後，仔細思考並確認確實要購買後，才進行商品原廠包裝之拆封，以免影響您的權利!!

1.本商品之鑑賞期非試用期，本商品一經拆封原廠包裝後，即視同您同意購買並支付全額貨款!

2.本商品為特殊性質商品，若欲退貨，請務必確認商品為完整原廠包裝未經拆封和使用。

3.退貨時請您務必確定商品必須為新品狀態，須為原廠完整包裝(包含主體，配件，內外包裝，隨機文件，贈品，發票單據等)。

本商品於您退貨後會先送交工程人員檢測，若發現有前述情形，恕本公司不接受退貨，您仍需支付全額貨款。
